DropShip Admin Panel

Complete technical specification for a multi-vendor dropshipping management system — Laravel API, Nuxt.js 3 frontend, MySQL database.

11
Screens
7
Modules
REST
API
SSR
Nuxt 3
Live Demo Access
Open Live Demo
Email: admin@gmail.com Pass: admin@gmail.com
OVERVIEW

Project Overview

Description

DropShip Admin is a comprehensive multi-vendor dropshipping management panel. Administrators can manage users (agents, admins, super admins), products with category-based tier pricing, order processing with full status workflow, wallet/withdrawal management, and content via posts and sliders.

Tech Stack

BackendLaravel 10+ (PHP 8.1+)
FrontendNuxt.js 3 (Vue 3 + TS)
DatabaseMySQL 8.0+
CacheRedis 7+
AuthLaravel Sanctum (SPA)
StylingTailwind CSS

Key Features

Multi-role User Management
Product CRUD + Tier Pricing
Order Lifecycle Workflow
Bulk Order Processing
Wallet & Withdrawal System
Multi-store Commission Tiers
CMS Posts & Sliders
Captcha Login Security
Real-time Dashboard Stats

ARCHITECTURE

System Architecture

┌────────────────────────────────────────────────────────────────┐
                    CLIENT (Browser)
  ┌────────────────────────────────────────────────────────────────┐
             Nuxt.js 3 (SSR / CSR)
    ┌─────────┐ ┌───────────┐ ┌───────────┐ ┌────────────┐
     Pages   Components Composables Pinia Store
    └─────────┘ └───────────┘ └───────────┘ └────────────┘
    └───────────────────────┘──────────────────┘
                                 HTTP JSON + Sanctum Auth
└─────────────────────────────────┘│─────────────────────────────────┘

┌─────────────────────────────────┘│───────────────────────────────────┐
               Laravel API Server
  ┌────────────────────────┘│─────────────────────────────────────┐
                   Routes (api.php)
    ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────────┐
     Auth     User    Product    Order
    └─────────┘ └─────────┘ └─────────┘ └─────────────┘
    ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────────┐
     Wallet   Post    Slider     Store
    └─────────┘ └─────────┘ └─────────┘ └─────────────┘
                  Eloquent ORM
    └───────────────────────┘│─────────────────────────────────────┘
              MySQL 8.0+ Database
    users | products | categories | orders | wallets
  └──────────────────────────────────────────────────────────────────────┘
└──────────────────────────────────────────────────────────────────────────┘

BACKEND

Laravel API Specification

Core Requirements

PHP8.1 or higher
Laravel10.x / 11.x
Auth GuardSanctum SPA (cookie)
ValidationForm Request classes
ResourcesAPI Resources JSON
Middlewarerole:^super_admin|admin

Folder Structure

app/
├── Http/Controllers/
│   ├── AuthController.php
│   ├── DashboardController.php
│   ├── UserController.php
│   ├── ProductController.php
│   ├── CategoryController.php
│   ├── OrderController.php
│   ├── WalletController.php
│   ├── PostController.php
│   └── SliderController.php
├── Http/Requests/
├── Http/Resources/
├── Models/
├── Services/
└── routes/api.php

Middleware & Auth Routes

// routes/api.php
Route::post('/login', [AuthController::class, 'login']);

Route::middleware('auth:sanctum')->group(function () {
    Route::post('/logout', [AuthController::class, 'logout']);
    Route::get('/dashboard', [DashboardController::class, 'index']);

    Route::middleware('role:super_admin,admin')->group(function () {
        Route::apiResource('users', UserController::class);
        Route::apiResource('products', ProductController::class);
        Route::apiResource('categories', CategoryController::class);
        Route::apiResource('orders', OrderController::class);
        Route::apiResource('posts', PostController::class);
        Route::apiResource('sliders', SliderController::class);
        Route::prefix('wallet')->group(function () {
            Route::get('/users', [WalletController::class, 'list']);
            Route::post('/adjust', [WalletController::class, 'adjust']);
            Route::get('/withdrawals', [WalletController::class, 'withdrawals']);
            Route::post('/withdrawals/{id}/approve', [WalletController::class, 'approve']);
        });
    });
});

FRONTEND

Nuxt.js 3 Frontend Specification

Core Configuration

Nuxt3.x (Vue 3 + Composition API)
LanguageTypeScript
StatePinia
HTTP$fetch / useFetch (Nitro)
UITailwind CSS

Folder Structure

nuxt-dropship/
├── pages/
│   ├── login.vue
│   ├── dashboard.vue
│   ├── users/       (index, agents, admins)
│   ├── products/    (index, categories)
│   ├── wallet/      (users, withdrawals)
│   ├── posts/       (index, create)
│   └── settings/    (sliders)
├── components/
├── composables/     (useAuth, useApi)
├── stores/          (auth, dashboard)
├── layouts/         (admin.vue)
├── middleware/       (auth.ts)
└── nuxt.config.ts

Composable: useApi.ts

export const useApi = () => {
  const config = useRuntimeConfig()
  const baseURL = config.public.apiBase as string

  const apiFetch = async <T>(url: string, opts: any = {}) => {
    return await $fetch<T>(url, {
      baseURL,
      credentials: 'include',
      ...opts,
    })
  }

  return { apiFetch }
}

DATABASE

MySQL Database Schema

-- Users & Roles
CREATE TABLE users (
    id BIGINT UNSIGNED AUTO_INCREMENT PRIMARY KEY,
    name VARCHAR(255) NOT NULL,
    email VARCHAR(255) UNIQUE NOT NULL,
    password VARCHAR(255) NOT NULL,
    phone VARCHAR(20),
    role ENUM('super_admin','admin','agent','partner','user') DEFAULT 'user',
    status TINYINT DEFAULT 1,
    created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

-- Categories (hierarchical with commission %)
CREATE TABLE categories (
    id BIGINT UNSIGNED AUTO_INCREMENT PRIMARY KEY,
    name VARCHAR(255) NOT NULL,
    parent_id BIGINT UNSIGNED,
    commission_rate DECIMAL(5,2) DEFAULT 0,
    FOREIGN KEY (parent_id) REFERENCES categories(id)
);

-- Products
CREATE TABLE products (
    id BIGINT UNSIGNED AUTO_INCREMENT PRIMARY KEY,
    category_id BIGINT UNSIGNED NOT NULL,
    name VARCHAR(255) NOT NULL,
    sales_price DECIMAL(10,2) NOT NULL,
    buying_price DECIMAL(10,2) NOT NULL,
    profit DECIMAL(10,2) GENERATED ALWAYS AS (sales_price - buying_price) STORED,
    status ENUM('active','inactive') DEFAULT 'active'
);

-- Orders
CREATE TABLE orders (
    id BIGINT UNSIGNED AUTO_INCREMENT PRIMARY KEY,
    order_id VARCHAR(100) UNIQUE NOT NULL,
    user_id BIGINT UNSIGNED NOT NULL,
    product_id BIGINT UNSIGNED NOT NULL,
    selling_price DECIMAL(10,2),
    costing_price DECIMAL(10,2),
    profit DECIMAL(10,2),
    status ENUM('to_be_paid','to_be_confirmed','goods_to_be_received',
                'platform_processed','to_be_shipped','complete') DEFAULT 'to_be_paid'
);

-- Wallets
CREATE TABLE wallets (
    id BIGINT UNSIGNED AUTO_INCREMENT PRIMARY KEY,
    user_id BIGINT UNSIGNED UNIQUE NOT NULL,
    amount_available DECIMAL(12,2) DEFAULT 0.00,
    frozen_amount DECIMAL(12,2) DEFAULT 0.00
);

-- Withdrawals
CREATE TABLE withdrawals (
    id BIGINT UNSIGNED AUTO_INCREMENT PRIMARY KEY,
    user_id BIGINT UNSIGNED NOT NULL,
    amount DECIMAL(12,2) NOT NULL,
    transaction_fee DECIMAL(12,2) DEFAULT 0.00,
    payable_amount DECIMAL(12,2) NOT NULL,
    status ENUM('pending','approved','rejected','completed') DEFAULT 'pending'
);

SCREENSHOTS

Module Screenshots

Click any image to open fullscreen lightbox with zoom. Use arrows to navigate between screenshots.

01

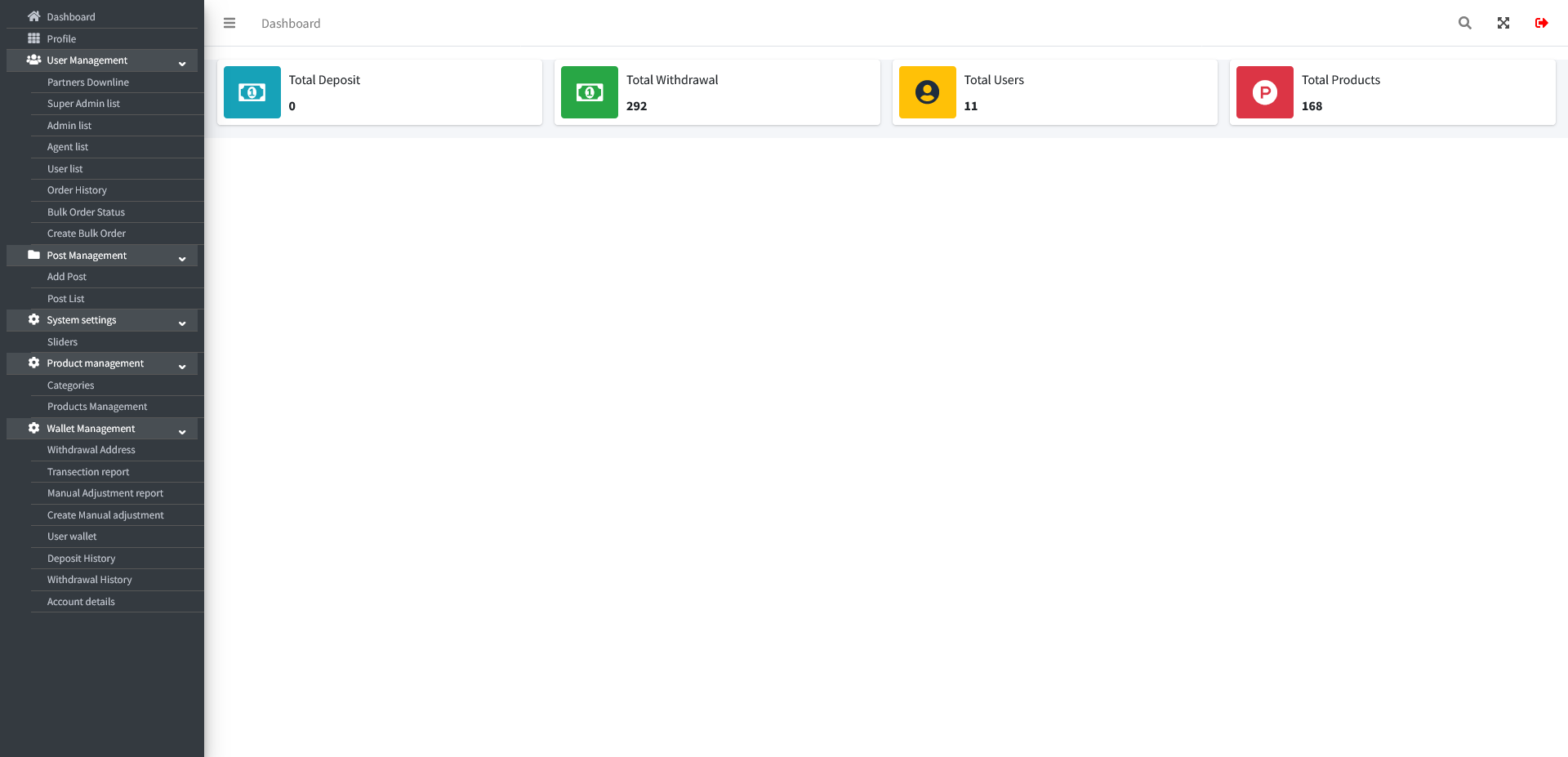

Dashboard

Main admin dashboard with stat cards: Total Deposit, Total Withdrawal, Total Users, Total Products.

Dashboard
Dashboard
#1Dashboard with Stats Cards
02

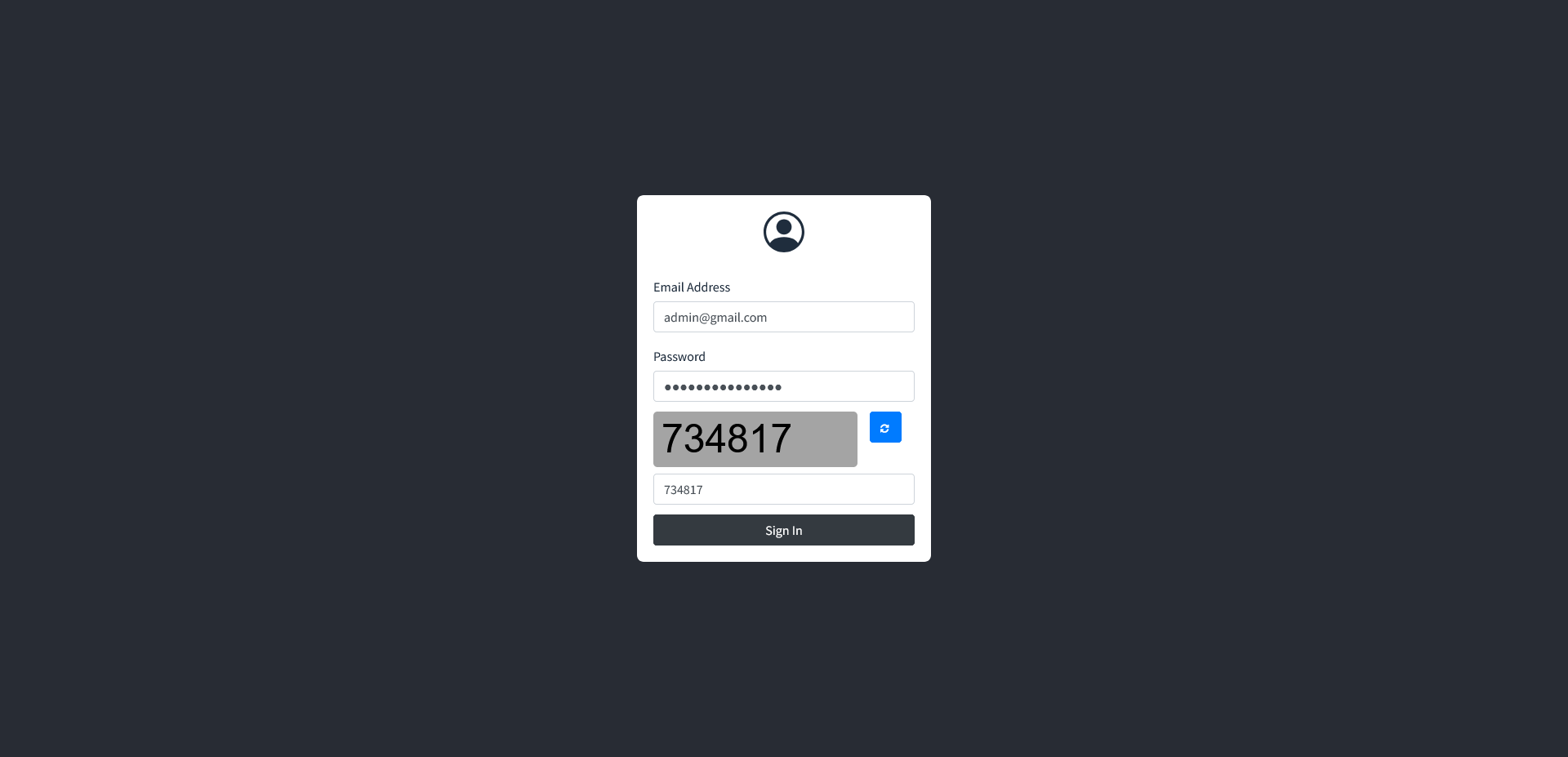

Login Authentication

Captcha-protected login with email, password, and numeric captcha. Laravel Sanctum session-based auth.

Demo Credentials
Email admin@gmail.com
Password admin@gmail.com
Login Page
Login
#2Captcha-protected Login Form
03

Order Management

Full order lifecycle with status tabs, detail modal, and bulk update support.

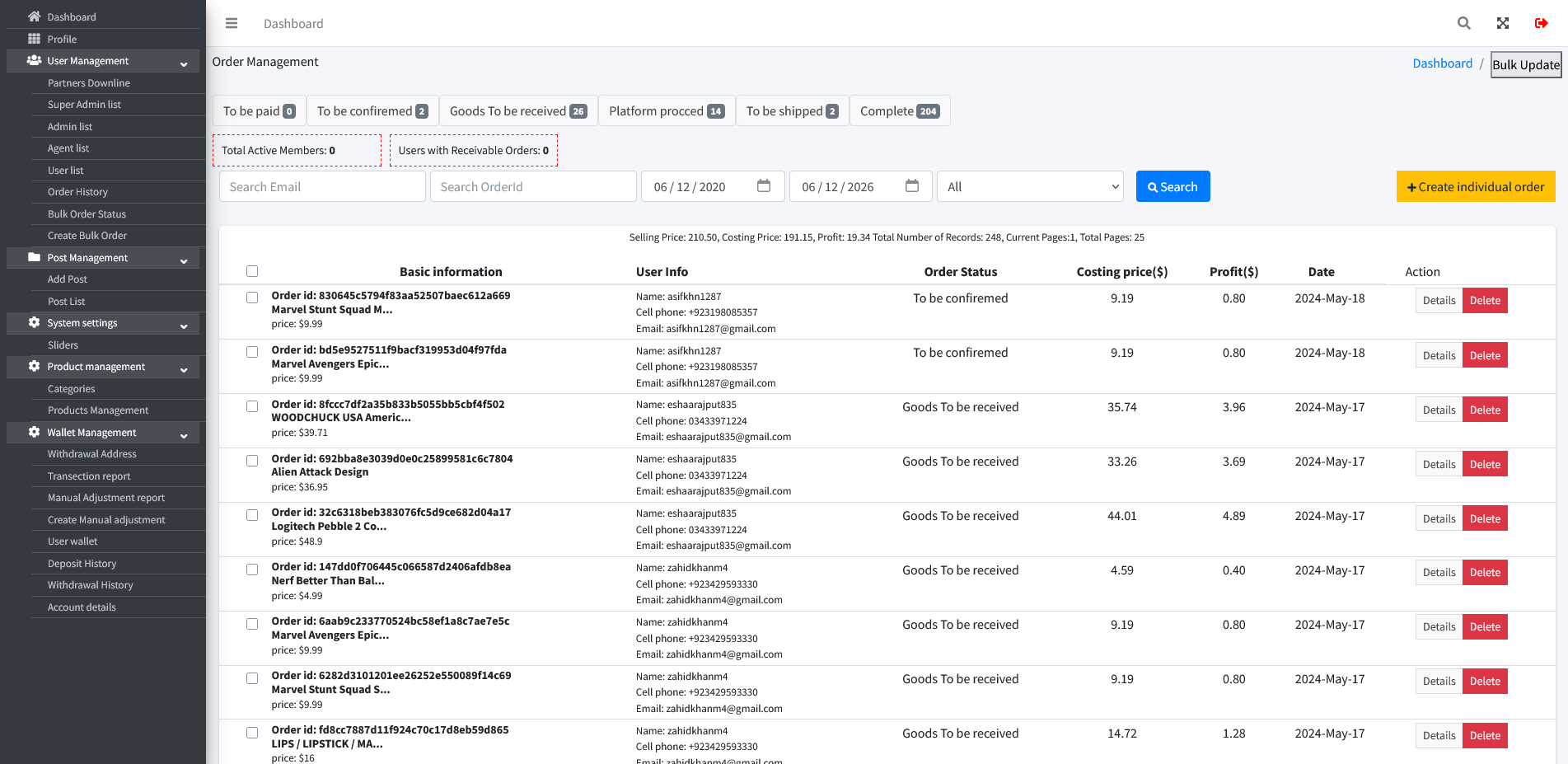

Order List
Order List
#3Orders with Status Tabs

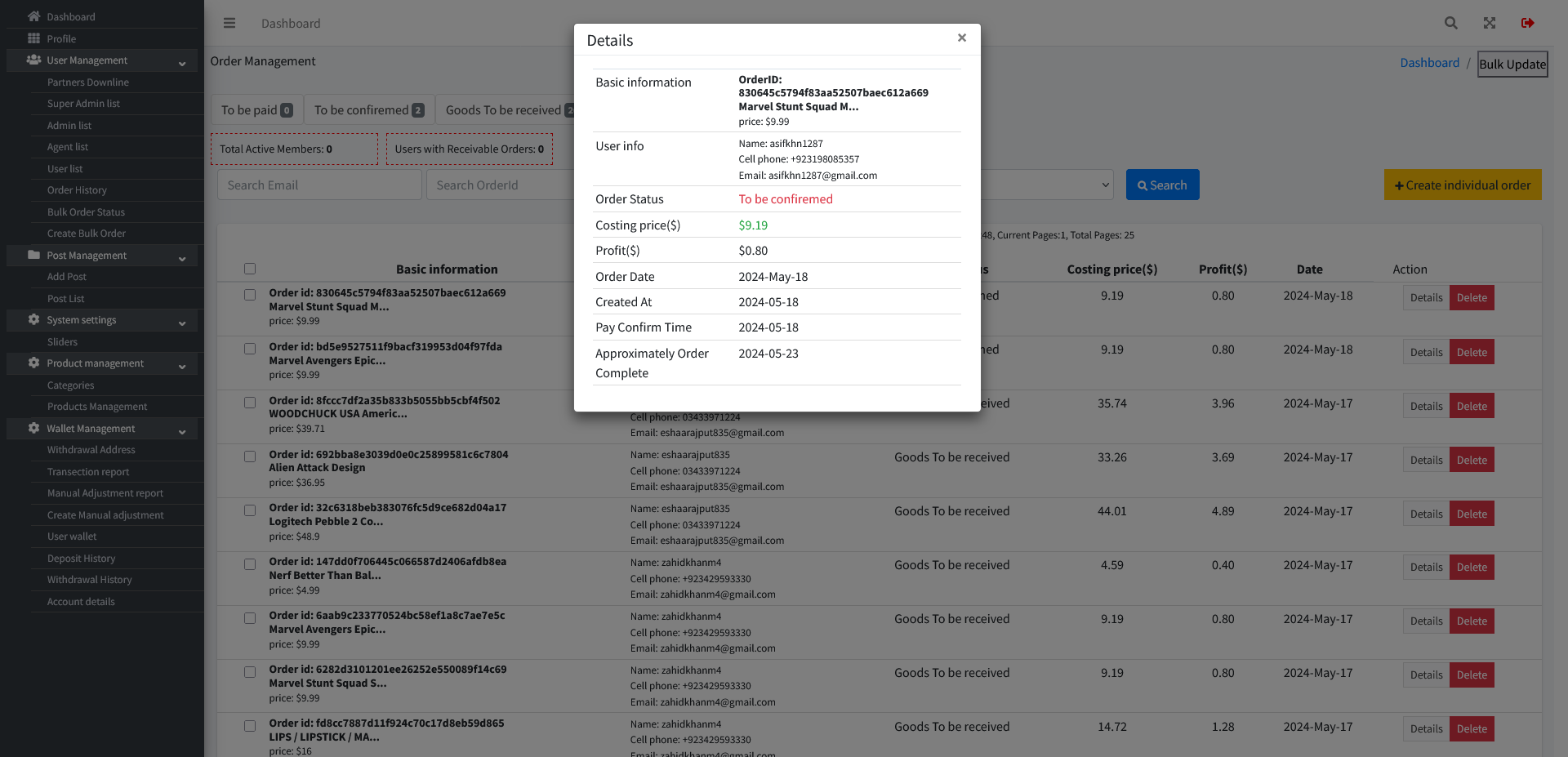

Order Detail
Order Detail
#4Order Detail Modal
04

Product & Category Management

Hierarchical categories by agency tier with product pricing and edit actions.

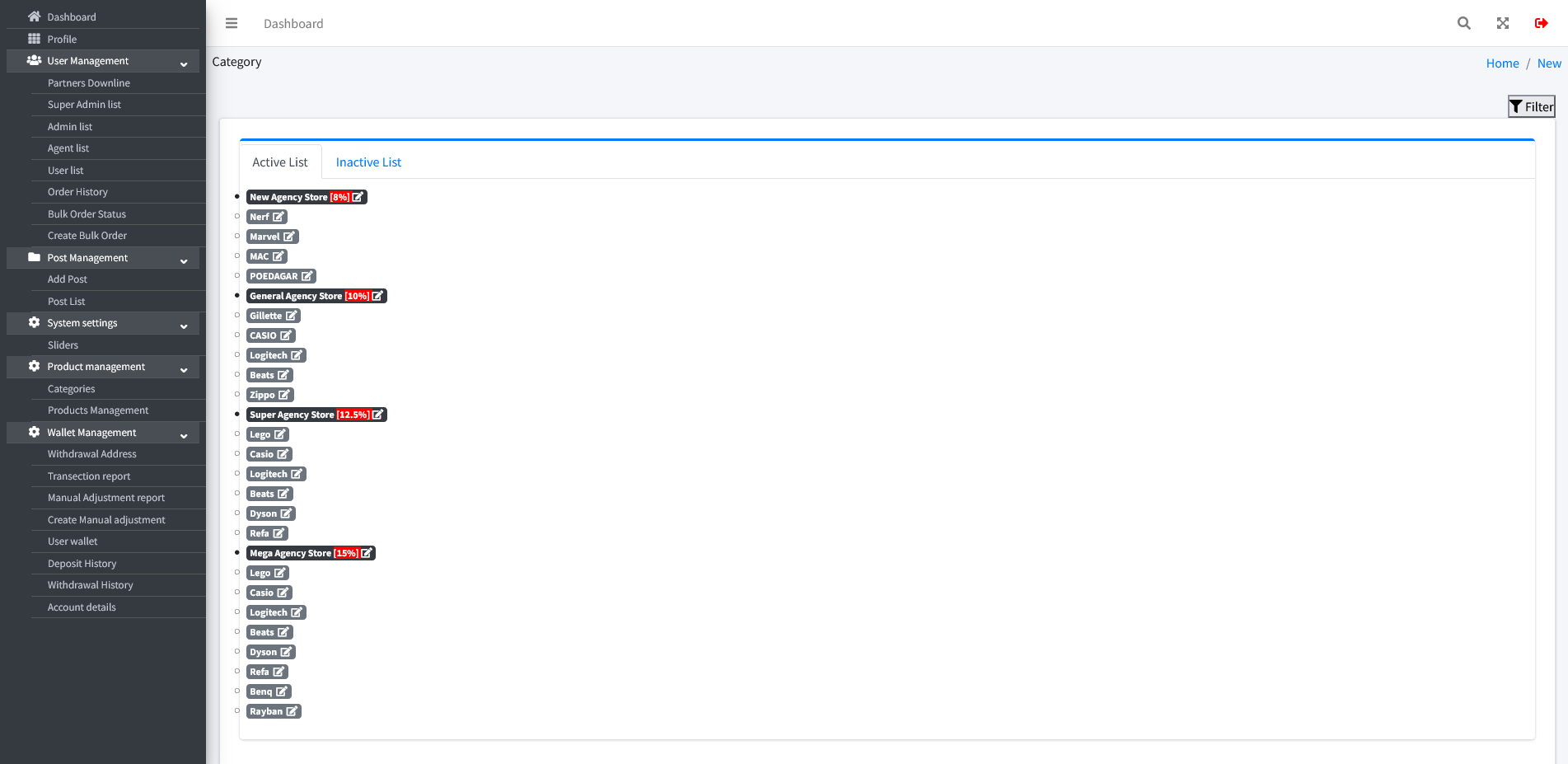

Categories
Categories
#5Category Hierarchy

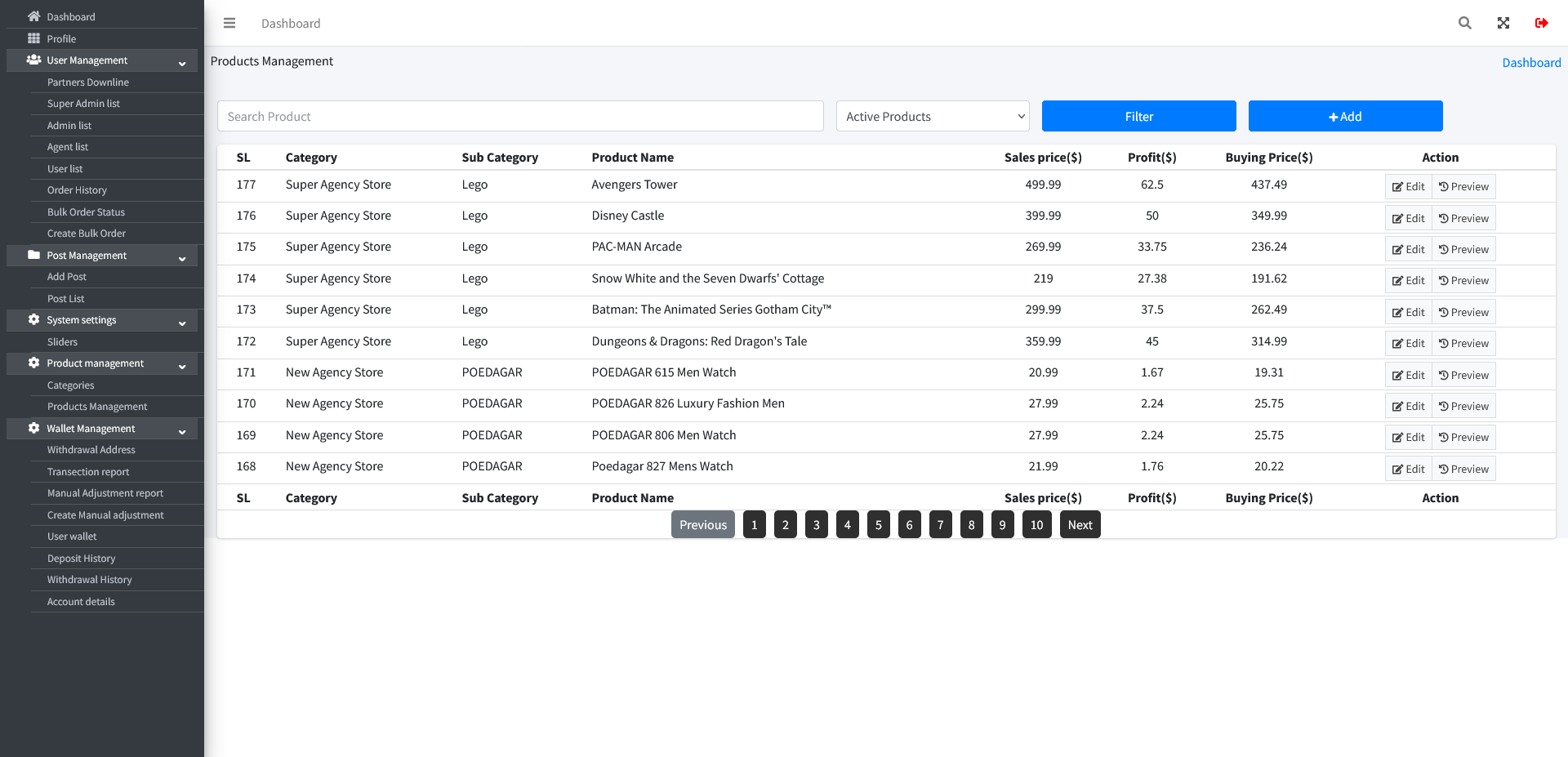

Products
Products
#6Products with Pricing
05

Wallet & Withdrawal

User wallets, withdrawal addresses, and withdrawal list with date filtering.

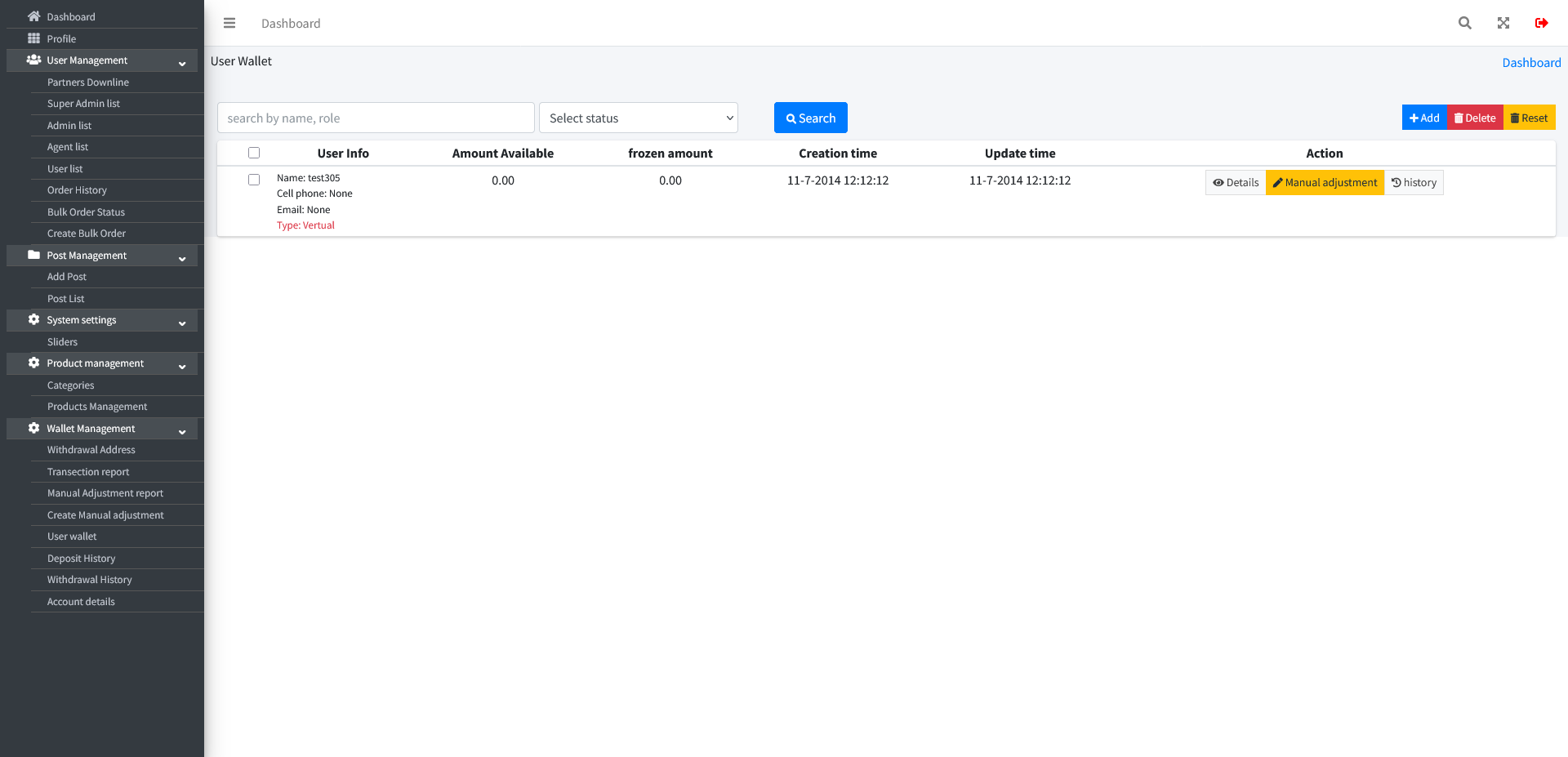

User Wallet
User Wallet
#7Wallet Balance

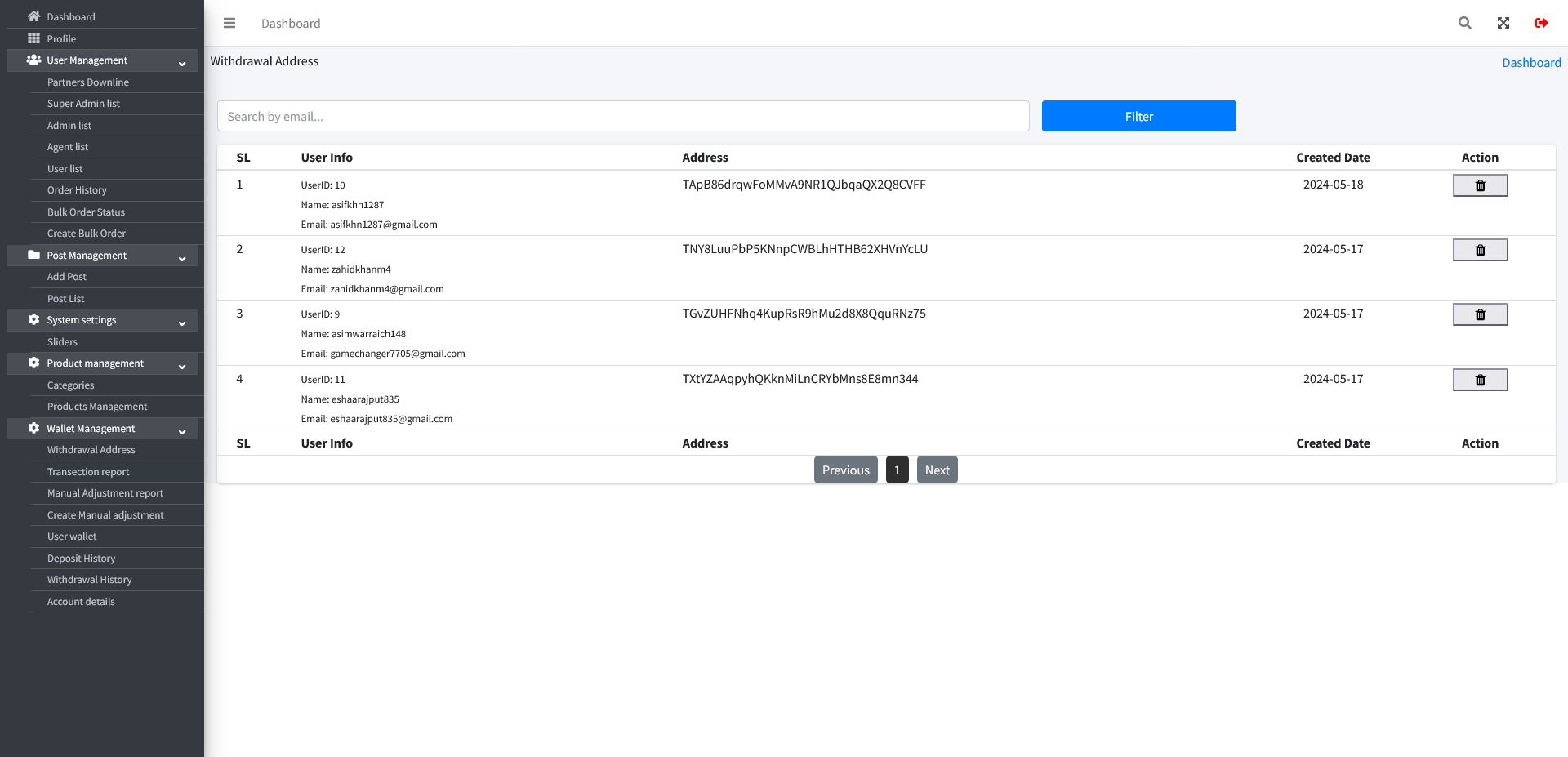

Addresses
Withdrawal Addresses
#8Withdrawal Addresses

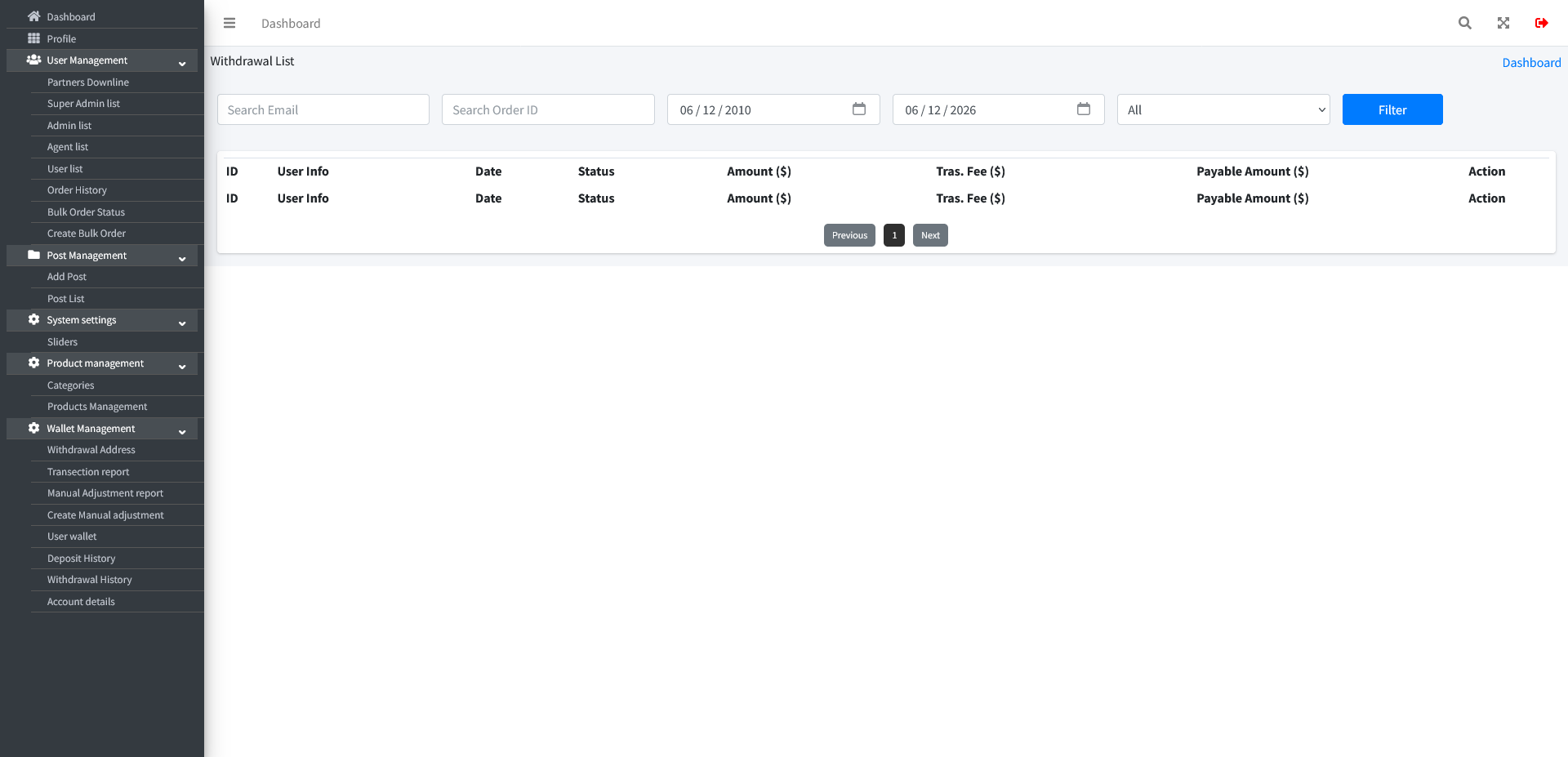

Withdrawals
Withdrawal List
#9Withdrawal List
06

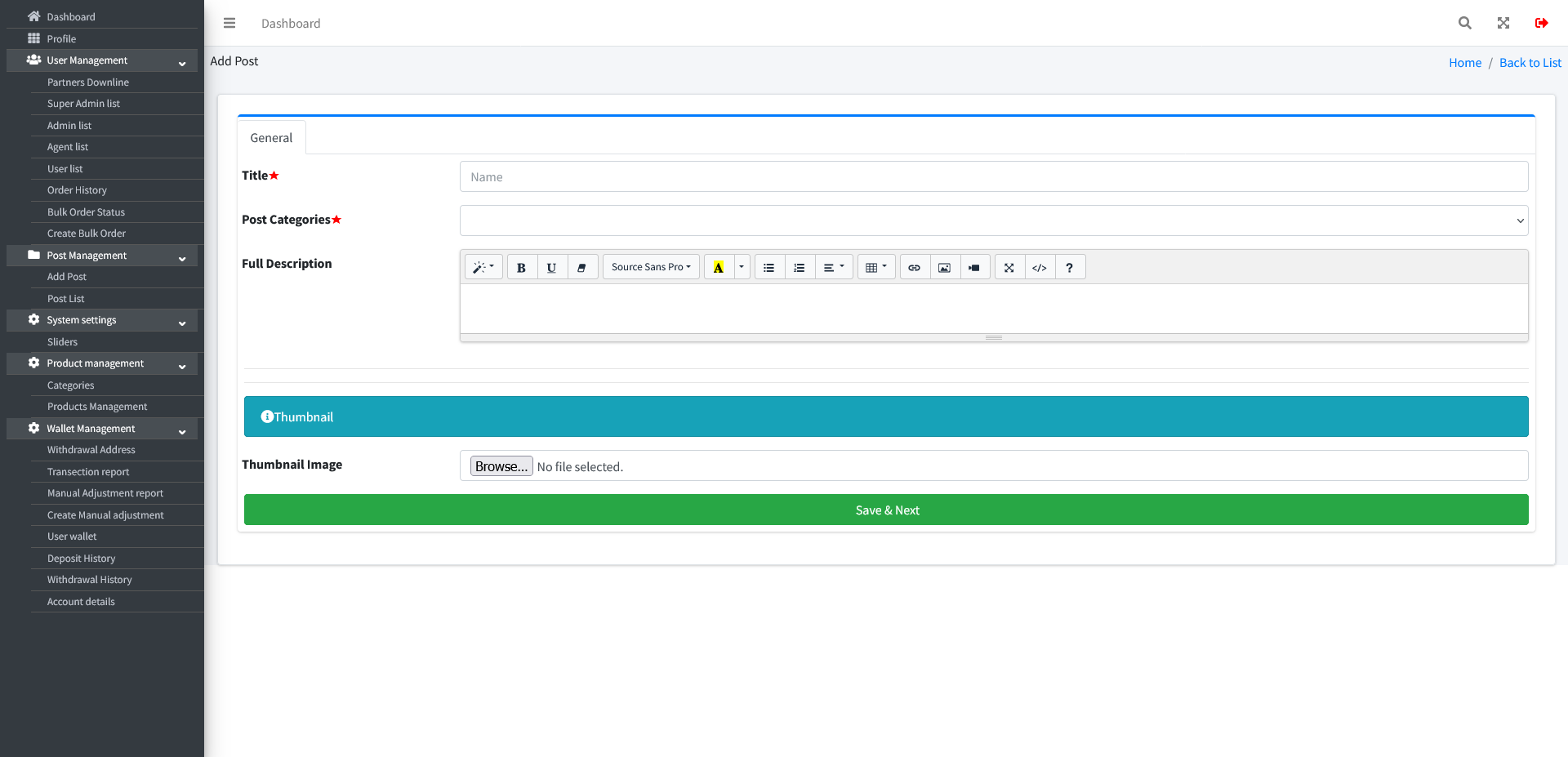

Post Management

WYSIWYG editor with title, categories, and thumbnail upload.

Add Post
Add Post
#10Add Post with WYSIWYG Editor
07

Store Management

Multi-store management with data synchronization.

Store Management
Store Management
#11Store Management with Data Sync

DESIGN

Color System

Light Mode

Primary
#3B82F6
Success
#22C55E
Warning
#F59E0B
Danger
#EF4444
Info
#06B6D4
Surface
#F8FAFC

Dark Mode

Primary
#60A5FA
Success
#4ADE80
Warning
#FACC15
Danger
#F87171
Info
#22D3EE
Surface
#1E293B

API

API Endpoints

Method Endpoint Description Auth
POST/api/loginAuthenticate userPublic
POST/api/logoutDestroy sessionAuth
GET/api/dashboardDashboard statsAuth
GET/api/usersList users (paginated)Admin
POST/api/usersCreate userAdmin
PUT/api/users/{id}Update userAdmin
DEL/api/users/{id}Delete userAdmin
GET/api/productsList productsAdmin
POST/api/productsCreate productAdmin
GET/api/categoriesList categoriesAdmin
GET/api/ordersList orders (status)Admin
PUT/api/orders/{id}/statusUpdate order statusAdmin
GET/api/wallet/usersList walletsAdmin
POST/api/wallet/adjustManual adjustmentAdmin
GET/api/wallet/withdrawalsList withdrawalsAdmin
POST/api/wallet/withdrawals/{id}/approveApprove withdrawalAdmin
GET/api/postsList postsAdmin
POST/api/postsCreate postAdmin

SETUP

Setup & Deployment

Laravel Backend

# Clone and install
git clone https://github.com/repo/dropship-api.git
cd dropship-api
composer install

# Environment
cp .env.example .env
php artisan key:generate

# Database
php artisan migrate --seed

# Run
php artisan serve

# Sanctum config (.env)
SANCTUM_STATEFUL_DOMAINS=localhost:3000
SESSION_DRIVER=cookie

Nuxt 3 Frontend

# Clone and install
git clone https://github.com/repo/dropship-admin.git
cd dropship-admin
npm install

# nuxt.config.ts
export default defineNuxtConfig({
  runtimeConfig: {
    public: {
      apiBase: 'http://localhost:8000/api'
    }
  },
  ssr: true,
})

# Run
npm run dev
npm run build
